Holosun 509 Adapter for T1/T2 Mounts

Mount your Holosun 509 to a T1/T2 footprint.

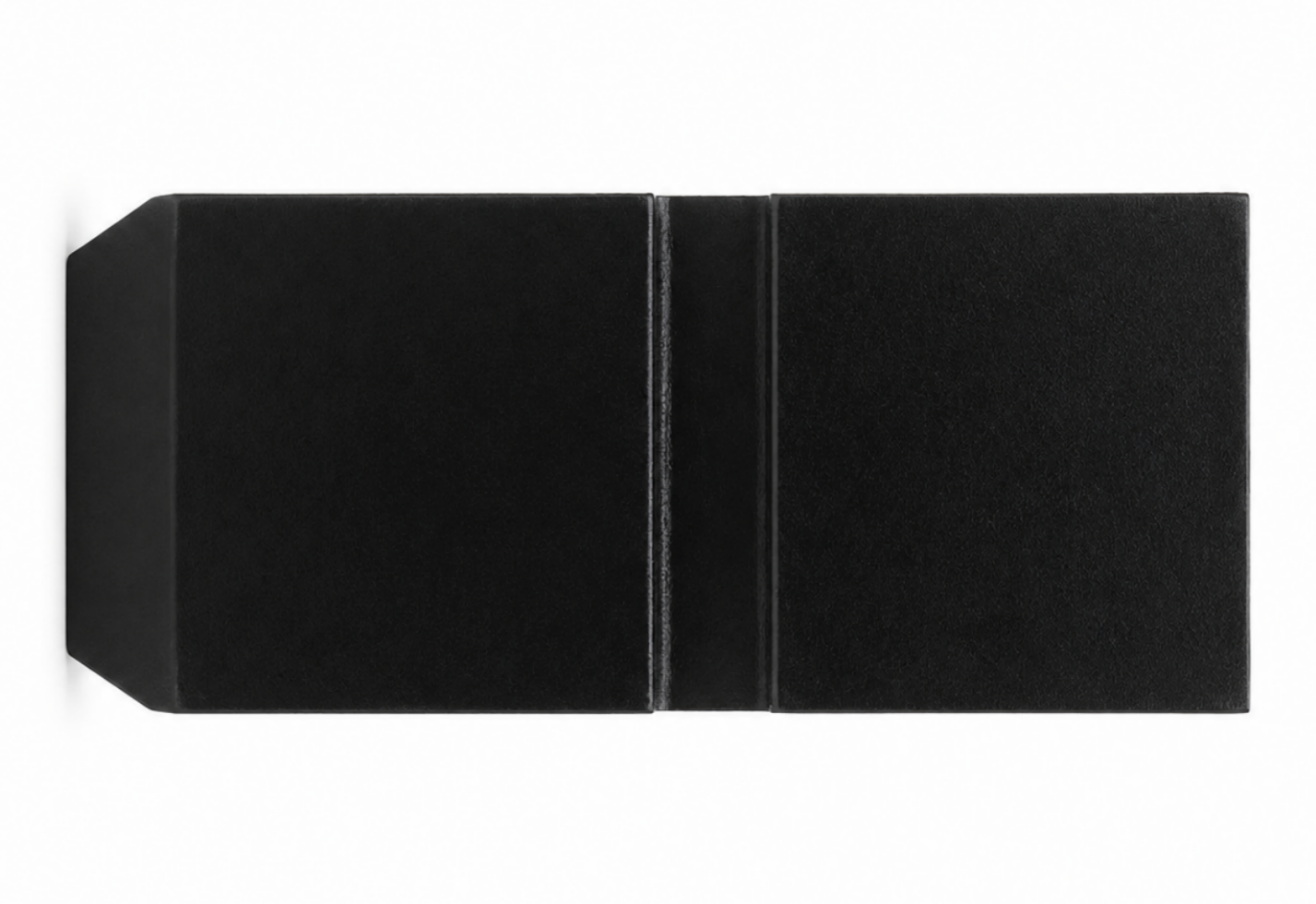

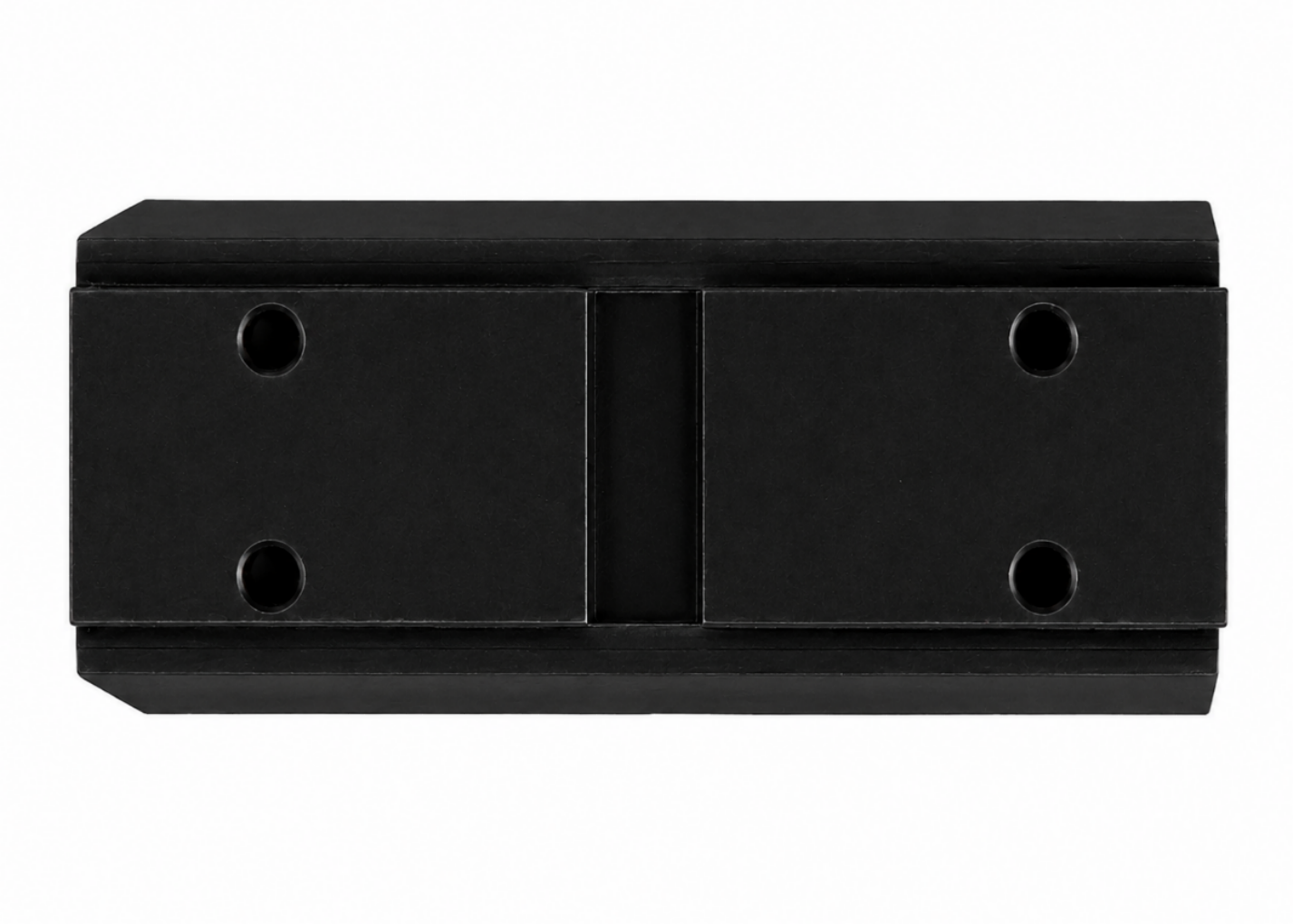

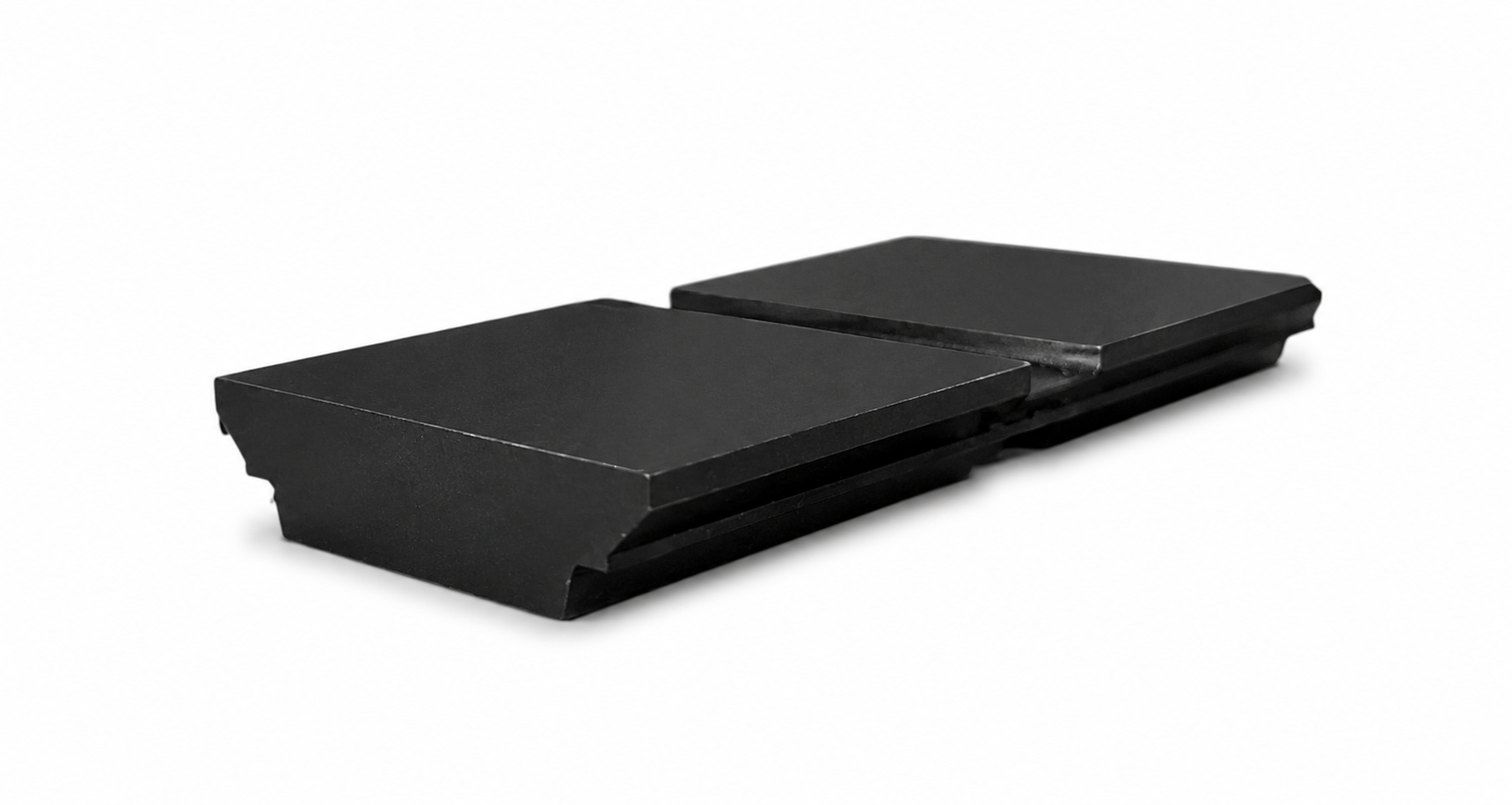

Meet the FLIP Holosun 509 Adapter

By popular request, we created a simple way to mount Holosun 509 series red dots to mounts that use the Aimpoint Micro T1/T2 footprint.

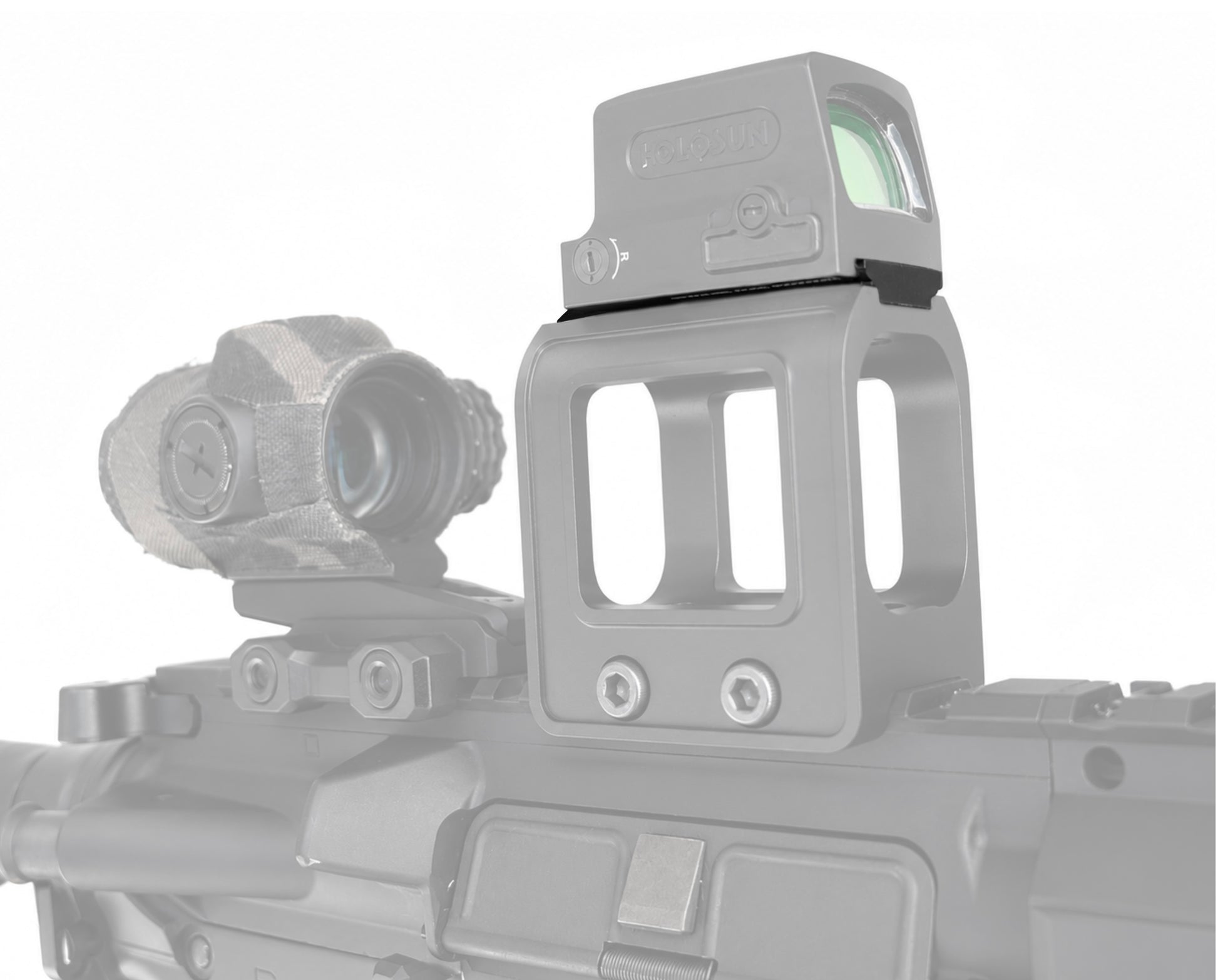

We originally developed this adapter for use with our standard and XL O.F.F. Mounts, but designed it to work with other compatible T1/T2 footprint mounts as well. Whether you are building a Dual Optic Stack or using the 509 as a standalone rifle optic, the adapter gives you more flexibility without requiring a dedicated mount.

Bundle with an O.F.F. Mount and Save:

Save $15 on your Holosun 509 Adapter when purchased with any FLIP Defense O.F.F. Mount. Use code 509STACK at checkout.

Why an Adapter Plate?

• More Optic Options: Use a Holosun 509 series enclosed red dot with compatible mounts designed around the T1/T2 footprint.
• Works Beyond the O.F.F. Mount: While the adapter was developed for our mounting system, it can also be used with other compatible T1/T2 footprint mounts.
• Flexible Hardware Options: Includes both 4 mm and 5 mm mounting screws to accommodate differences between compatible mounts.

Specifications

• Optic Compatibility: Holosun 509 series red dots
• Mount Compatibility: Mounts using the Aimpoint Micro T1/T2 footprint
• Material: 4140 hardened steel
• Included Screw Lengths: 4 mm and 5 mm
• Finish: Black
• Weight: 1.2 oz

What's Included?

• Holosun 509 Adapter
• 4 mm mounting screws
• 5 mm mounting screws

NOTE: Red dots, optic mounts, firearms, rails, and other products shown in listing images are for demonstration purposes only and are not included with the adapter.

Compatibility

Compatible Optics

• Holosun 509 series red dots using the standard 509 mounting interface

Compatible Mounts

• FLIP Defense O.F.F. Mounts using the T1/T2 footprint
• Other mounts using the Aimpoint Micro T1/T2 footprint

Installation Notes

• Mount geometry and available thread depth can vary between manufacturers. Both 4 mm and 5 mm screws are included to accommodate different compatible mounts.
• Always confirm that the selected screws provide adequate thread engagement without bottoming out or interfering with the mount.
• Follow the optic and mount manufacturers' torque recommendations. Do not overtighten.
• For best results, we recommend using Blue Loctite (medium-strength, removable) or Vibra-Tite VC-3 on adapted screws.
